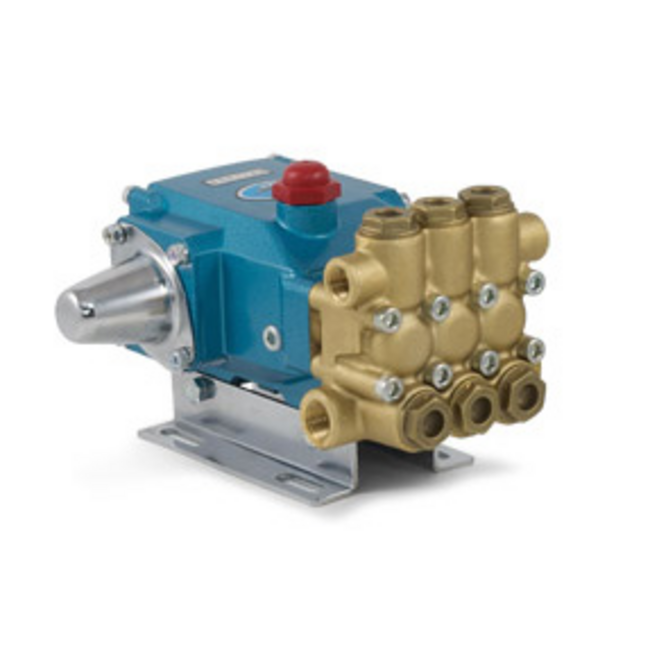

This is a triplex (three plunger rods) positive displacement, reciprocating, plunger pump, constructed of a forged brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N)o-rings and low pressure seals. High pressure seals are a special blend PTFE for high temperature applications.
Technical Specifications
Max Flow 4.2 gpm / 15.9 lpm
Max Pressure 2200
Inlet Port Size 1/2" NPT(F)
Discharge Port Size 3/8" NPT(F)
RPM 1725
Drive Type(s) Belt, Clutch, Flexible Coupling and Bellhousing
Material Brass
