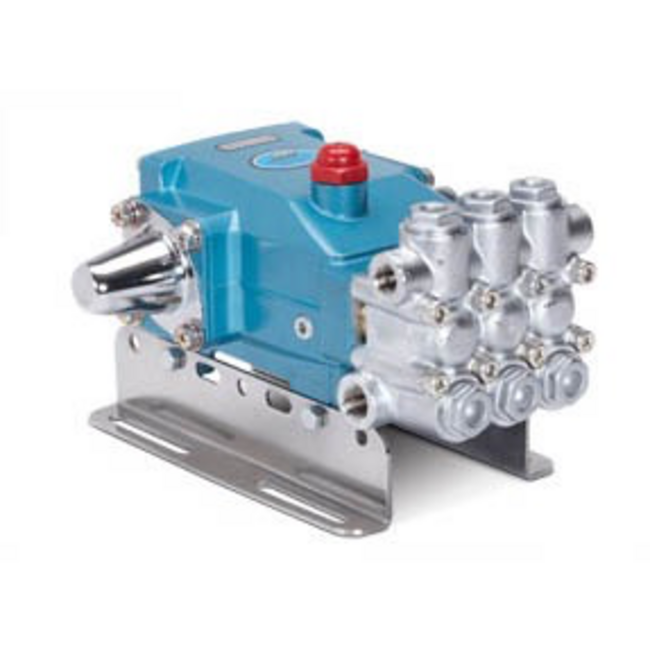

This is a triplex (three plunger rods) positive displacement, reciprocating, plunger pump, constructed of a special W770 manifold, 304SS valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and o-rings.
Technical Specifications
Max Flow 4 gpm / 15.1 lpm
Max Pressure 2500
Inlet Port Size 1/2" NPT(F)
Discharge Port Size 3/8" NPT(F)
RPM 950
Drive Type(s) Belt, Clutch, Flexible Coupling and Bellhousing
Material Brass
