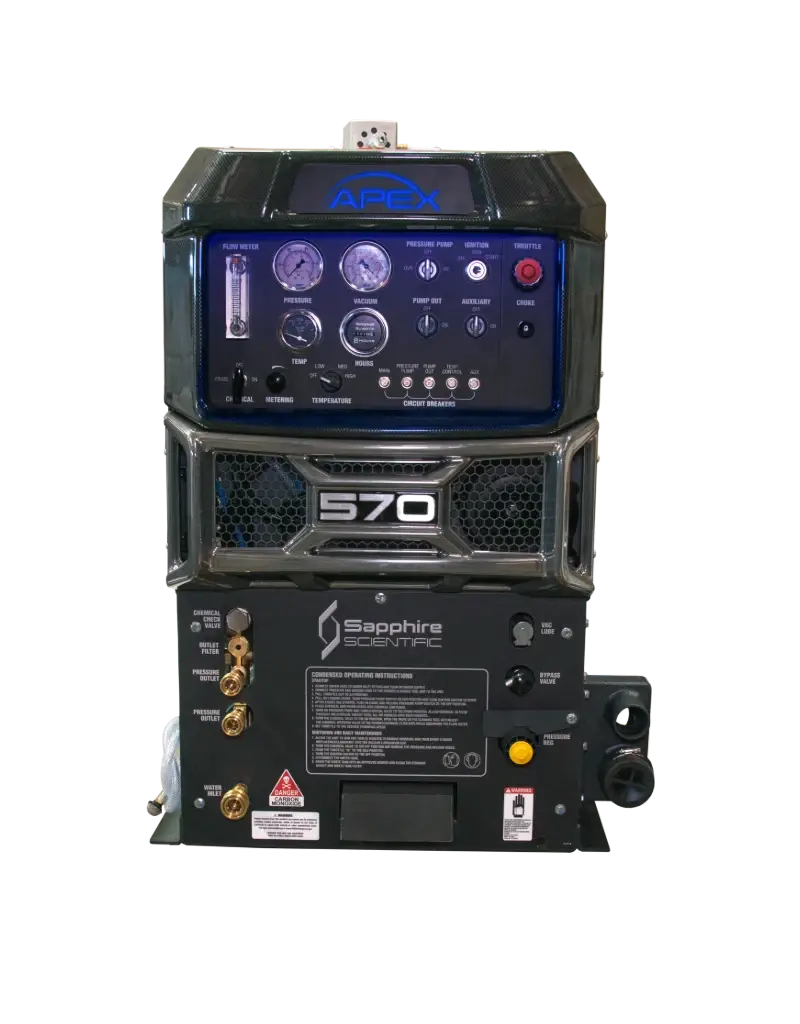

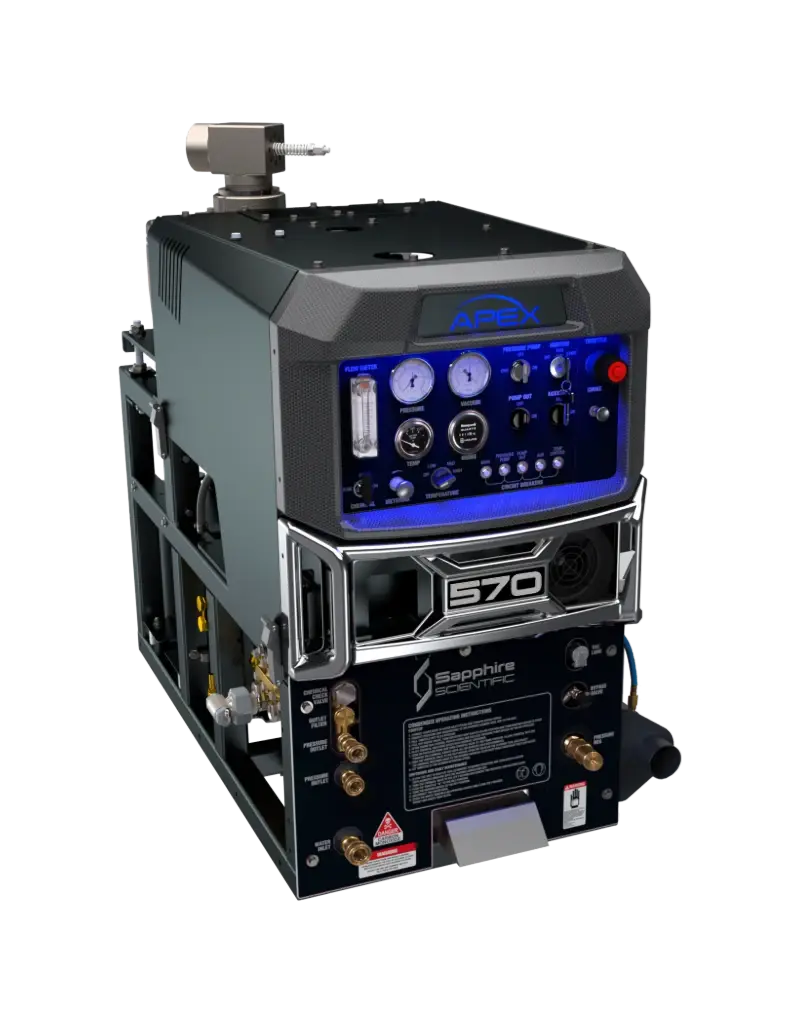

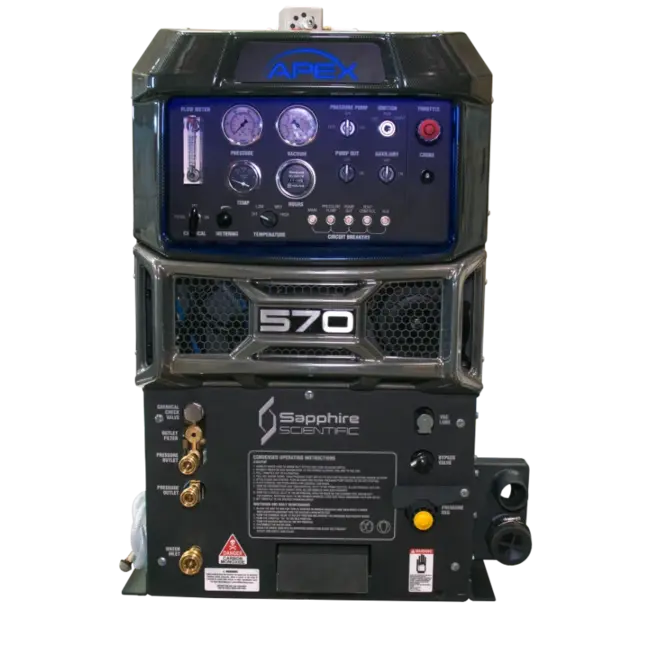

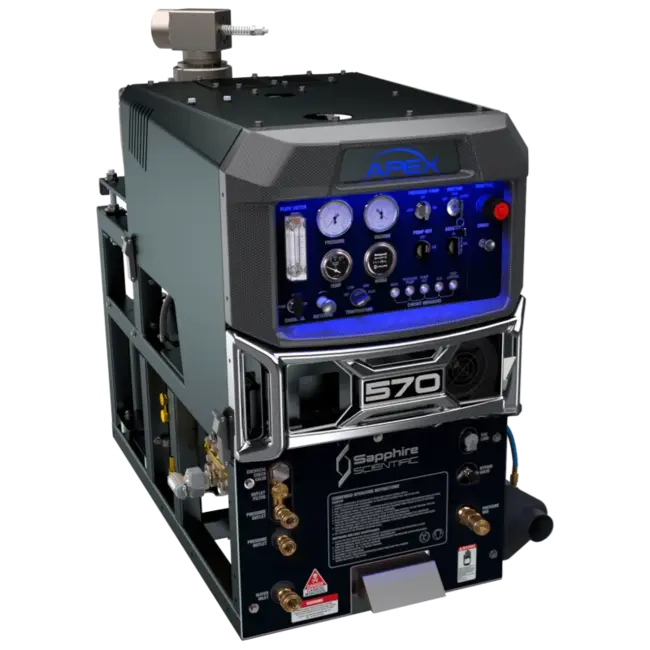

Sapphire Scientific APEX 570 - 120 Gallon Waste Tank
Powered by a liquid-cooled cast iron Kubota engine, the Apex 570 truckmount uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler. (Not available in California.)
Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
Through-frame drive belt cooling significantly reduces downtime by extending belt life
Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life
Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution
Easy-to-remove access panel and side hoods allows for quick service
Narrowest liquid-cooled slide-in on the market
14-inch glided titanium wand
Recovery tank with shut-off switch and recovery tank vacuum hoses
Hose clamps for vacuum, water and fuel hoses
Two recovery tank mesh filters and stainless steel strainer basket
100 ft. of 1/4-inch high pressure solution hose with shutoff valve and quick connects
50 ft. of 1/4-inch high pressure solution hose with quick connects
150 ft. of 2-inch vacuum hose
50 ft. water supply hose with quick connect
|
POWER PLANT |
29.5 HP 3 cyl, cast Iron block & head liquid cooled Kubota industrial gas engine |
| VACUUM PUMP | Gardner Denver 4008 Tri-Lobe helical rotor vacuum blower, dual wand capacity |
| SOLUTION PUMP | General HTS2026S pressure pump w/electric clutch up to 1500 PSI @ 5.0 GPM |
| HEAT EXCHANGER | Patented Thermal Well fin tubed heat exchanger with additional coolent HEX |
| FRAME CONSTRUCTION | 0.125 in. × 2 in. powder-coated aluminum box tubing |
