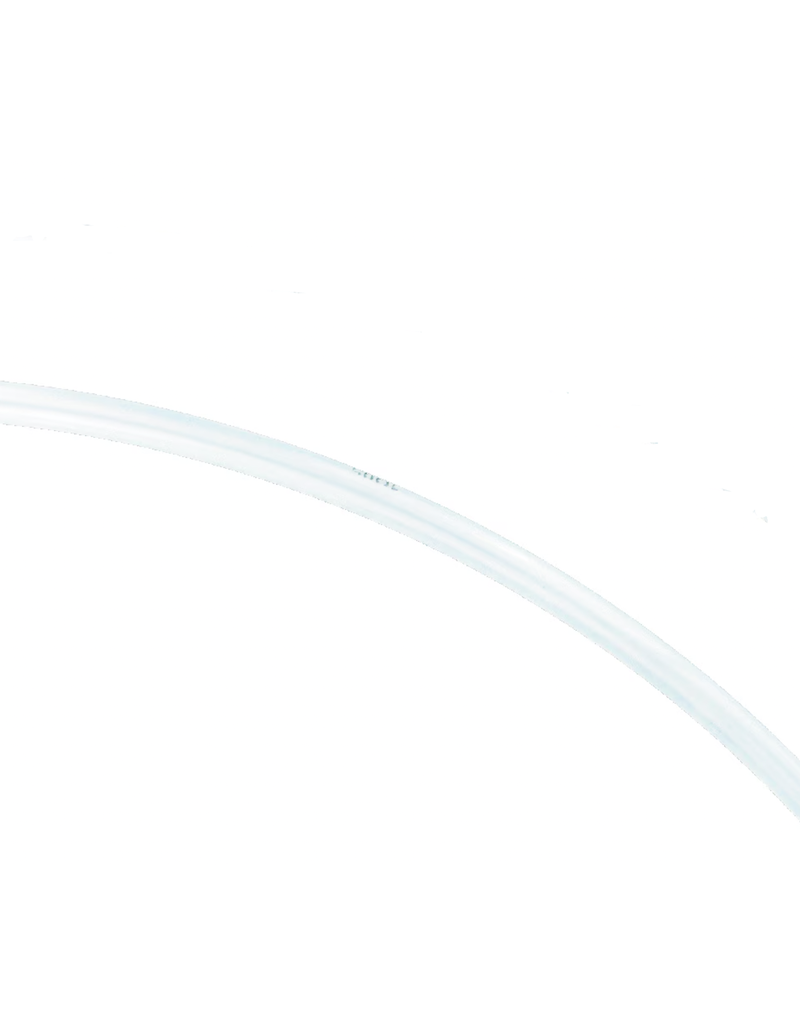

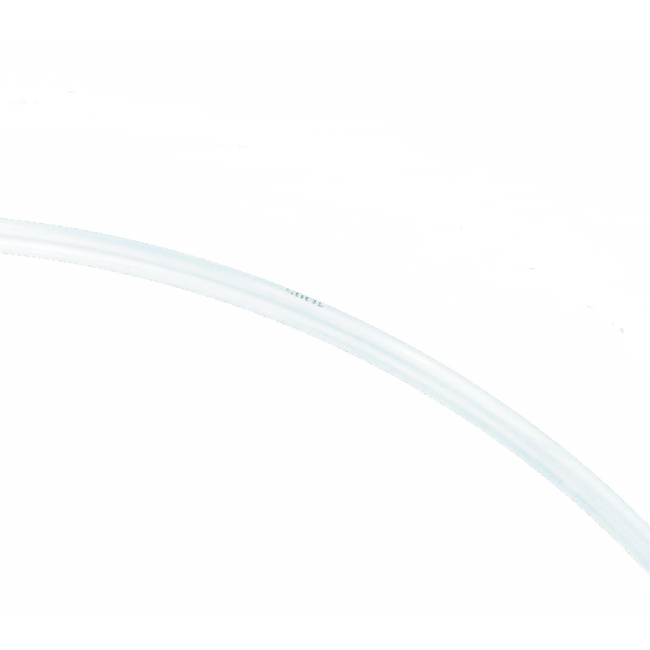

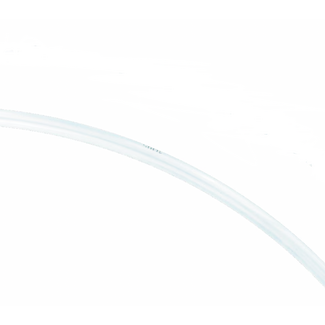

Used for blower lubrication port. Used on Many Carpet Cleaning Truckmounts.
| Application: |
Fluid Transfer, Lubrication Systems, Instrumentation, Process Piping Systems, Pneumatics |
| Tube Inside Diameter: |
0.184 inch, 4.7 mm |
| Tube Outside Diameter: |
1/4 inch, 6.4 mm |
| Maximum Operating Pressure: |
375 psi, 25.9 bar |
| Minimum Burst Pressure: |
1500 psi, 103.4 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Minimum Operating Temperature: |
-60 °F, -51 °C |
| Minimum Bend Radius: |
1 inch, 25.4 mm |
| Media: |
Air, Chemicals, Lubricants, Fuels (Oil), Water, Coolants (Refrigerant) |
| Color: |
Natural |
| Weight: |
n/a |
| Tube Material: |
Polyamide (PA) |
| Size: |
1/4 inch |
| Length per Package: |
60.8 m, 200 ft |
| Tube O.D. (inch): |
1/4 |
